Sistema Atomizador Lpg-50 High Speed Centrifugal Spray Drying Food Machinery Machine

Product Categories
Changzhou Welldone Machinery Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sistema Atomizador Lpg-50 High Speed Centrifugal Spray Drying Food Machinery Machine

Brand Name : Welldone

Place of Origin : Jiangsu, China

MOQ : 1

Price : $3,300-3,600

Voltage : 220V-480V (TBD)

Power : 3.5kw

Dimension : 650*500*1550mm

Weight : 120kg

Heating method : Electric Heating

Material : SUS304, SUS316L

Air Inlet Temperature : 30~300℃

Evaporation Capacity : 1kg/h

Drying Temperature : 150-300℃

Drying Efficiency : 50%

Core Components : Pump, Gear, Motor, PLC

Construction Material : SUS304/SUS316L/Titanium

Heating Source : Electric

Way to Discharge : Manual/ Pneumatic / Electrical

Moisture Content : 40-60% (up to 90%)

Contact Now

LPG-5 Lab Small Spray Dryer Mini / Laboratory Mini Spray Dryer Machine
Product Overview
The LPG-5 lab small spray dryer is designed for laboratory-scale drying applications with enhanced features to address common industry challenges. Its optimized design includes enlarged drying tower diameter and arc transitions to minimize flavor wall adhesion issues.
Key Features
  • High-speed drying capability - evaporates 95%-98% of water in seconds, ideal for heat-sensitive materials
  • Produces uniform powder with excellent solubility, fluidity, and purity
  • Simplified operation - converts liquids with 40-60% moisture content (up to 90% for special materials) to powder in one step
  • Adjustable product parameters - size, bulk density, and moisture content can be customized
  • Optional cooling device maintains lower product temperature
  • Optional Chamber Air Jet system reduces wall adhesion
Technical Specifications
Item Value
Type Spray Drying Equipment
Applications Chemicals, Plastics, Food Processing
Construction Material SUS304, SUS316L, Titanium
Voltage 220V-480V (TBD)
Power 2.2KW-255KW
Drying Temperature 150-300℃
Evaporation Capacity 1.5L-5000L
Warranty 2 years
Working Principle

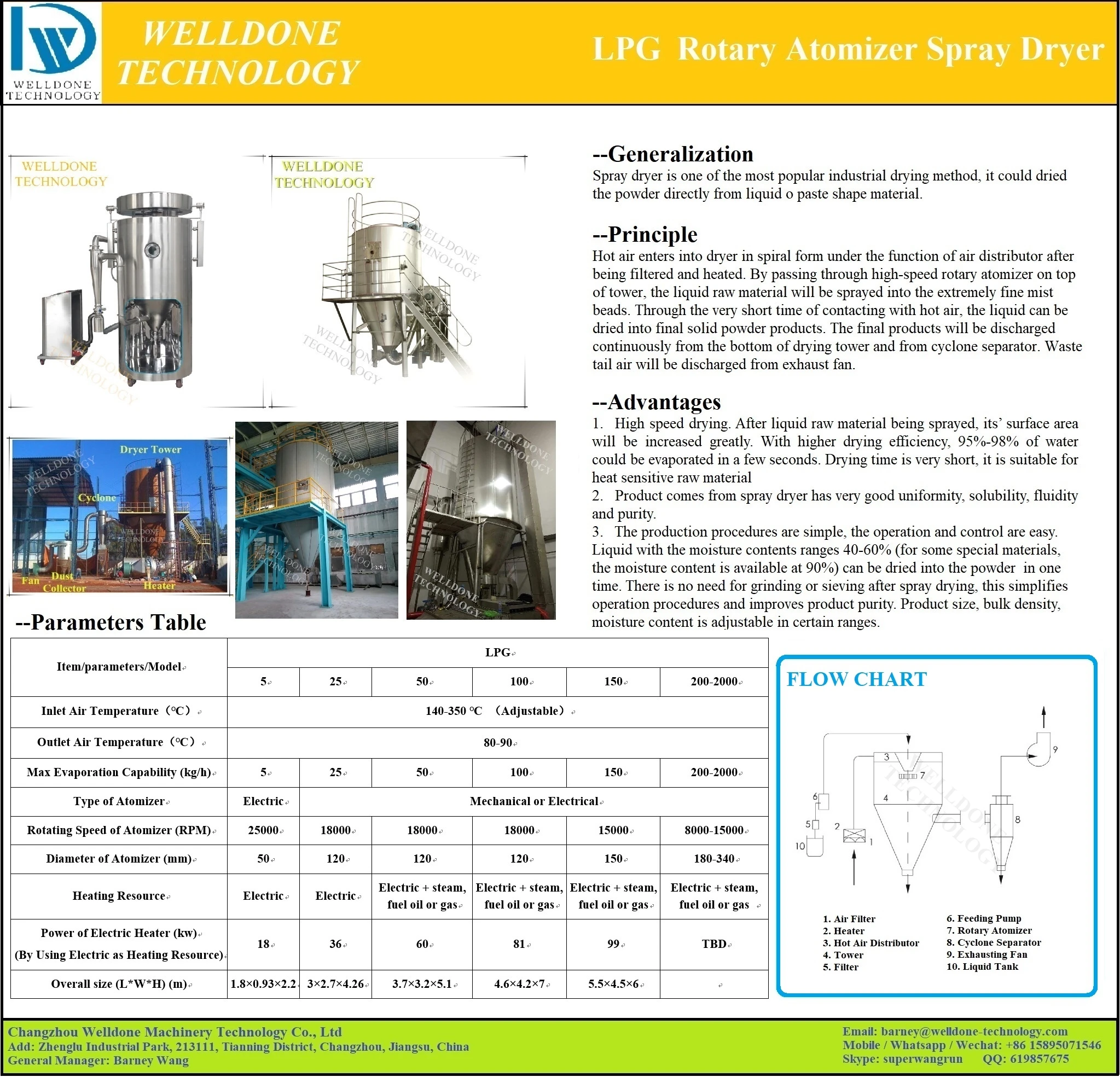

Filtered and heated air enters the dryer in a spiral pattern through an air distributor. Liquid material is atomized into fine droplets by a high-speed rotary atomizer. The droplets contact the hot air briefly, resulting in rapid drying. Final powder products discharge continuously from the drying tower and cyclone separator, while waste air exits through the exhaust fan.
Product Images
Sistema Atomizador Lpg-50 High Speed Centrifugal Spray Drying Food Machinery Machine Sistema Atomizador Lpg-50 High Speed Centrifugal Spray Drying Food Machinery Machine Sistema Atomizador Lpg-50 High Speed Centrifugal Spray Drying Food Machinery Machine
Our Comprehensive Services
Pre-Sale Services:
  • Technical data for equipment selection
  • Pilot testing
  • Material analysis and selection advice
  • Flow chart and basic drawing provision
  • Technical design support
During Sale Services:
  • Factory layout planning
  • Regular manufacturing progress reports
  • Complete manufacturing and shipping supervision
  • Detailed documentation including delivery lists
  • Clear serial numbering for all components
After-Sale Services:
  • On-site installation support
  • Commissioning and operator training
  • Maintenance and repair assistance
  • One year spare parts provision
  • Two-year quality warranty
